Small Stone Rock Jaw Crusher Introduction:

Jaw crusher is commonly known as jaw crusher, also known as Laohukou. The crushing chamber is composed of two jaw plates, a movable jaw and a static jaw, which simulates the movement of the animal's jaws to complete the material crushing operation. It is widely used in the crushing of various ores and bulk materials in mining and smelting, building materials, highways, railways, water conservancy and chemical industries. The highest compressive strength of the crushed material is 320Mpa.

Small Stone Rock Jaw Crusher C106 for Mobile Crushing Plant Working Principles:

The upper end of the movable jaw is directly hung on the eccentric shaft as the connecting rod of the crank connecting rod mechanism. It is directly driven by the eccentricity of the eccentric shaft. The lower end of the movable jaw is hinged and supported on the rear wall of the frame with a thrust plate. When the eccentric shaft rotates, the movement trajectory of each point on the movable jaw is from the circumference of the suspension point (radius equals to the eccentricity), gradually turning downwards into an ellipse, and the downward, the more the ellipse is, until the lower part and the thrust plate The trajectory of the connection point is a circular arc. Because the movement trajectory of each point on the movable jaw of this kind of machine is more complicated, it is called a complex swing type jaw crusher.

Small Stone Rock Jaw Crusher Features:

1. Low noise and less dust.
2. The crushing ratio is large and the product size is uniform.
3. The structure is simple, the work is reliable, and the operating cost is low.
4. The lubrication system is safe and reliable, the parts are easy to replace, and the equipment is easy to maintain.
5. The crushing cavity is deep and there is no dead zone, which improves the feeding capacity and output.
6. Equipment energy saving: single machine energy saving 15%-30%, system energy saving more than doubled.
7. The adjustment range of the discharge opening is large, which can meet the requirements of different users.

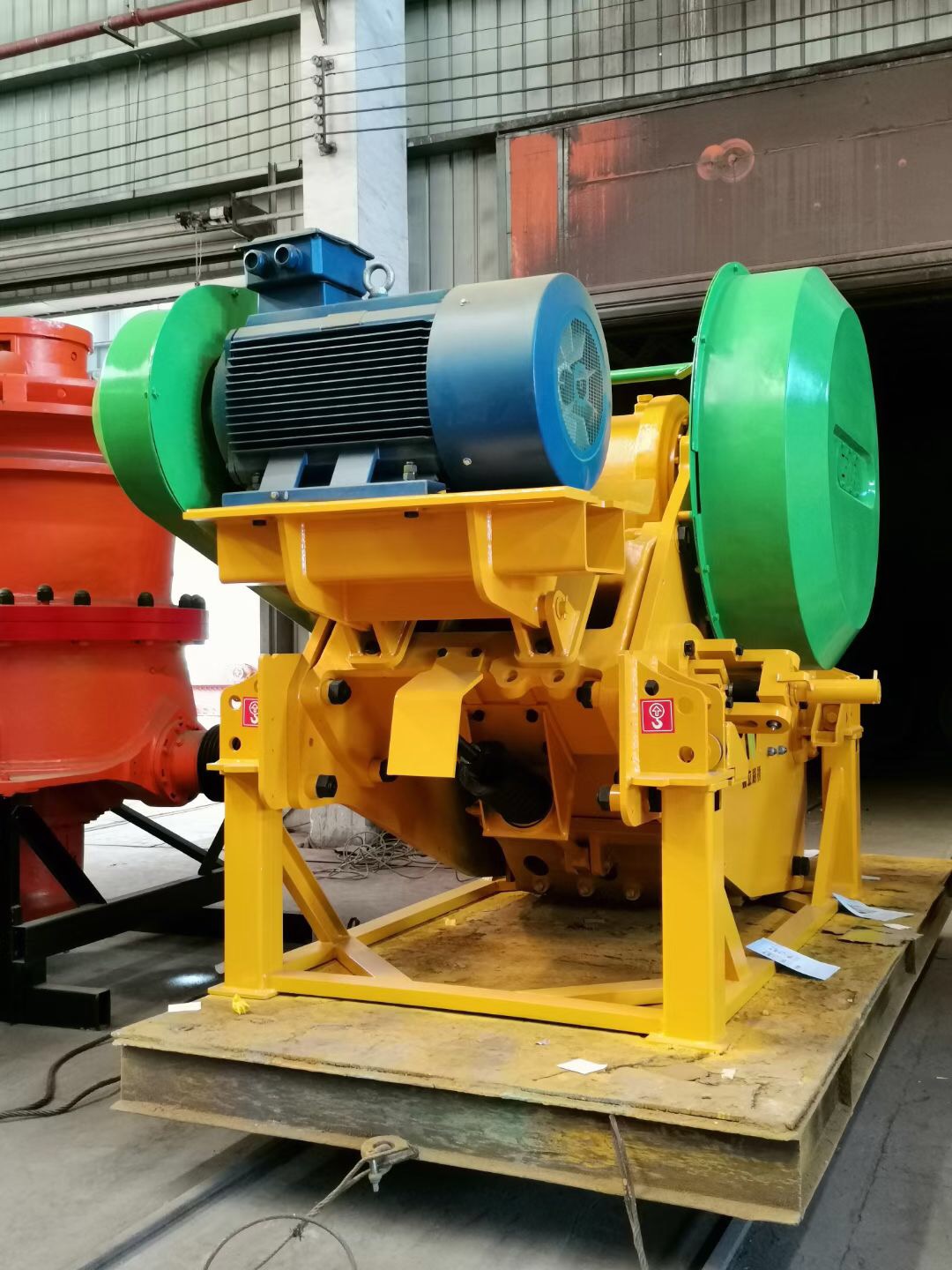

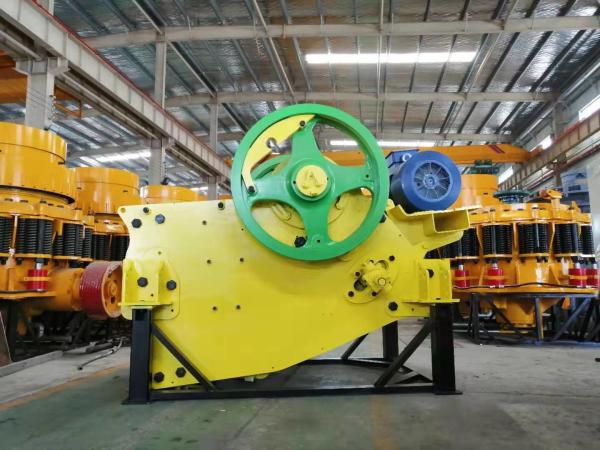

Small Stone Rock Jaw Crusher C106 Pictures:
