Mining Equipment Sand Washing Machine Wheel Type Sand Washer 150t/h Big Capacity

Mining Equipment Sand Washing Machine Wheel Type Sand Washer Industries:

Sand Washing Machine Wheel Type Sand Washer is widely used in washing, grading and impurity removal of metallurgy, building materials, hydropower and other industries, and is suitable for washing and washing of fine-grained and coarse-grained materials. It is suitable for sand for construction and gravel for road construction. The sand washing machine has reasonable structure, convenient maintenance, large processing capacity, small power consumption and high washing degree. The novel sealing structure, fully enclosed oil bath transmission and adjustable overflow raft ensure the high efficiency and durability of the series, good cleaning and dewatering effect, and stable fine grain products.

Wheel Bucket Sand Washer 150t/h Big Capacity XSD3620 Technical Parameters:

1. Type: Wheel Buck Sand Washing Machine

2. Model: XSD3620

3. Wheel Diameter: 3600mm

4. Selected Size: 10mm

5. Capacity: 150t/h

6. Power: 11KW

7. Weight: 4.3t

8. Dimension: 4500x3206x3485mm

Sand Washing Equipment Working Principles:

When sand washing equipment operates, the motor rotates slowly through the V-belt, reducer and gear, and the impeller rotates slowly. The gravel has a feed trough into the washing tank, which is tumbling under the impeller and grinds each other to remove impurities covering the surface of the gravel. Destroy the water vapor layer of the coated sand to facilitate dehydration; at the same time add water to form a strong water flow, take away the foreign matter with small impurities and small specific gravity in time, and discharge it from the overflow port to complete the cleaning. The clean sand is taken away by the blades, and finally the sand is poured from the rotating impeller into the discharge chute to complete the cleaning of the sand.

White Lai Mining Equipment Wheel Type Sand Washing Machine Features:

● The structure of the sand washing machine is simple, and the impeller drive bearing device is separated from the water and the water-receiving material to greatly avoid the occurrence of bearing damage caused by water immersion, sand and pollutants.

● No pollution, high degree of cleanliness

● Water saving

● Except the screen, the machine has almost no wearing parts

● Long service life and easy maintenance

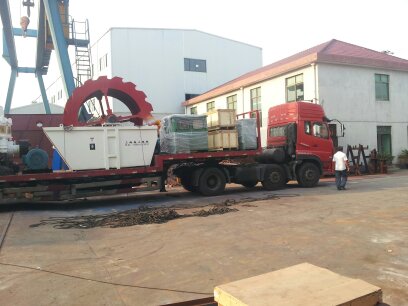

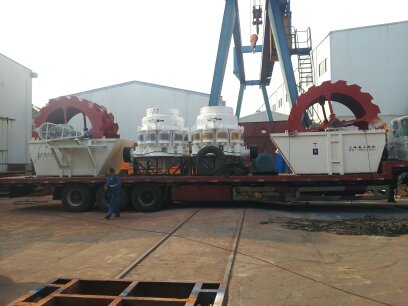

White Lai Wheel Bucket Sand Washer Shipments:

Shanghai White Lai Road & Bridge Machinery CO., Ltd. is a joint-stock enterprise specializing in the research and development, manufacturing of mining crushers, construction sand making machines, and crushing and screening equipment. It integrates production, sales and service. Its products include hydraulic multi-cylinder cone crusher, hydraulic single-cylinder cone crusher, Simmons cone crusher, jaw crusher, impact crusher, vertical shaft impact crusher, vibrating screen and complete sand production line, sea sand desalination production line, tower sand making station, etc. The company has acquired ISO9001:2015 international quality management system certification and EU CE certification. It always adheres to the strict control of product quality, and continues to issue high-tech products with independent intellectual property rights at international leading levels.

Shanghai White Lai Road & Bridge Machinery CO., Ltd. not only provides customers with high-performance products, but also first-class services and professional solutions. The company is equipped with an advanced SOLIDWORKS mechanical design system, a professional technical service team and multiple offices throughout China, in order to provide customers with more professional and timely services. It has established long-term partnerships with Hunan Sany Heavy Industry CO., Ltd. and other well-known construction machinery manufacturers at home and abroad. While expanding domestic market share, it also has exported to more than 150 other countries in the world such as the United States, Germany, Canada, Mexico, Russia, Kazakhstan, Vietnam, Laos, Thailand, Philippines, Malaysia, Indonesia, Cuba, Dominica, Brazil, Venezuela, Colombia, Peru, Chile, Saudi Arabia, Jordan, Libya, Zambia, Congo and so on. The company’s products are warmly welcomed by customers at home and abroad because of excellent quality and practical functions. It insists on continuous innovation and continuous improvement on product quality. Shanghai White Lai believes that its success depends on the trust of customers and is determined to become a world brand in this line.
