    Wheel Sand Washing Machine Reliable Structure , Bucket Wheel Sand Washer

    Ask Lasest Price
    Brand Name : White Lai
    Model Number : XSD3016
    Certification : CE
    Price : Please Inquire
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 50 units per month
    Delivery Time : 35 days
    • Product Details
    • Company Profile

    Wheel Sand Washing Machine Reliable Structure , Bucket Wheel Sand Washer

    Wheel Sand Washing Machine Reliable Structure , Bucket Wheel Sand Washer


    Wheel Bucket Sand Washer Equipment Brief Introduction:


    The wheel-type sand washing equipment is widely used in the washing, grading and impurity removal of metallurgy, building materials, hydropower and other industries, and is suitable for the washing operation of fine-grained and coarse-grained materials. It is suitable for sand for construction and gravel for road construction. The sand washing machine has reasonable structure, convenient maintenance, large processing capacity, small power consumption and high washing degree. The novel sealing structure, fully enclosed oil bath transmission and adjustable overflow raft ensure the high efficiency and durability of the series, good cleaning and dewatering effect, and stable fine grain products.


    Silica Sand Washing Machine for Sand Washing Plant Working Theories:


    The silica sand washing machine is driven by the motor and the reducer to drive the impeller in the water tank to rotate circumferentially in the water tank, thereby stirring and turning the sand or slag particles in the water tank in the water. , panning and discharging the water-receiving material in the impeller.


    White Lai Wheel Type Sand Washing Machine XSD3016 Basic Information:


    Key WordsSand Washing Machine
    ModelXSD3016
    Selected Size≤10mm
    Capacity80t/h
    Power7.5KW
    Weight3.26t
    Dimension3810x2686x3085mm

    Wheel Type Sand Washer Advantages Compared with Screw Spiral Type Sand Washing Machine:


    1. The structure of the machine is simple, and the impeller drive bearing device is isolated from the water and the water-receiving material, thereby greatly avoiding the damage of the bearing due to water immersion, sand and pollutants.


    2. The fine sand and stone powder are rarely lost, and the sand grading and fineness modulus of the washed building reaches the national "building sand", "building pebble, gravel" standard.


    3. The machine has almost no wearing parts except the screen.


    4. Long service life, no maintenance for a long time

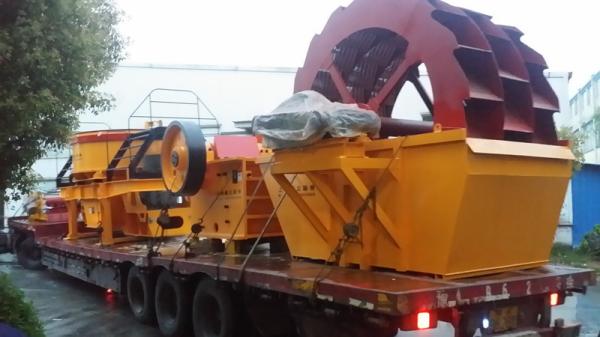

    White Lai Silica Sand Washing Plant at Site Pictures:
